Frontek Plus System Cladding Clips

Weiqiang manufactures a range of metal cladding clips for Frontek Plus System facade applications, including Vertical Clips, Double Clips, Turning Clips and Starter Clips. These components are designed for different panel-fixing positions and edge details within clip-based facade assemblies.

As a facade fixing components manufacturer in Foshan, China, we can produce clips according to approved drawings, existing samples and project requirements. Custom dimensions and production quantities can be discussed according to the selected clip type.

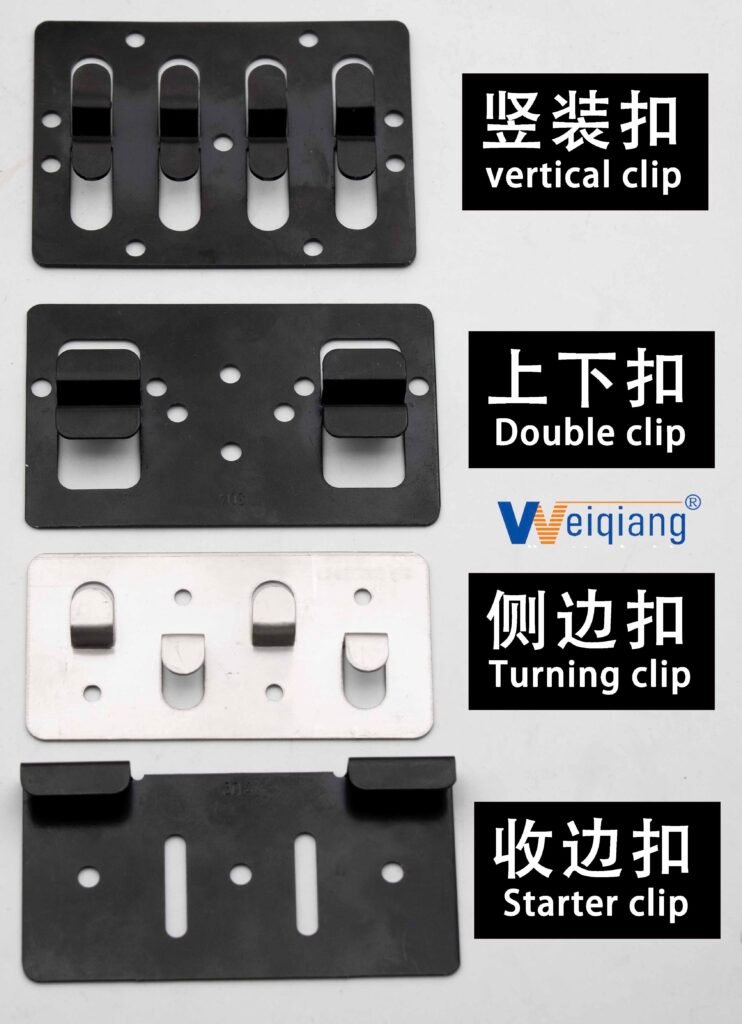

Frontek Plus System Clip Types

Our product range includes four clip configurations for different installation positions.

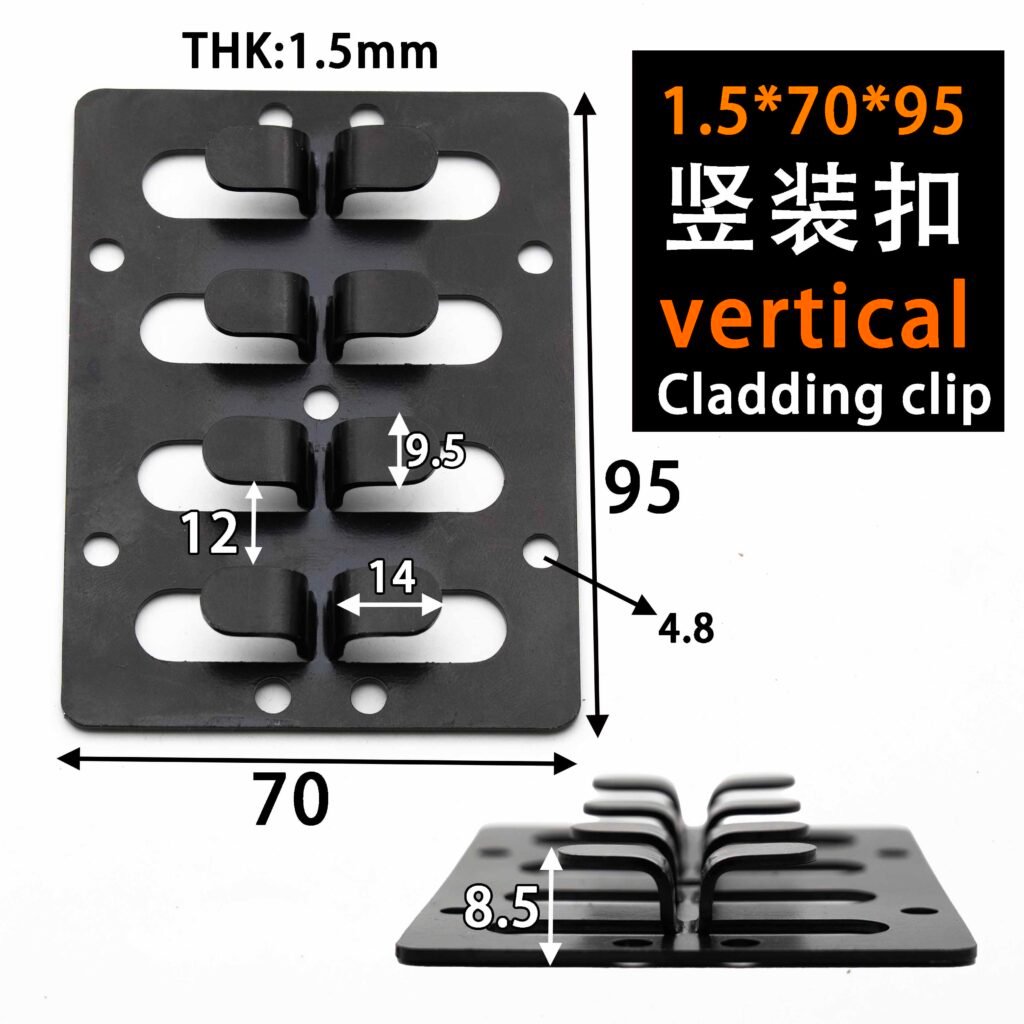

1. Vertical Clip

The Vertical Clip is designed for vertical panel-fixing configurations within the corresponding facade system. Its formed clip profile provides the required engagement point for the panel according to the system’s installation design.

The exact clip orientation, fixing position and supporting profile arrangement should follow the approved installation drawings.

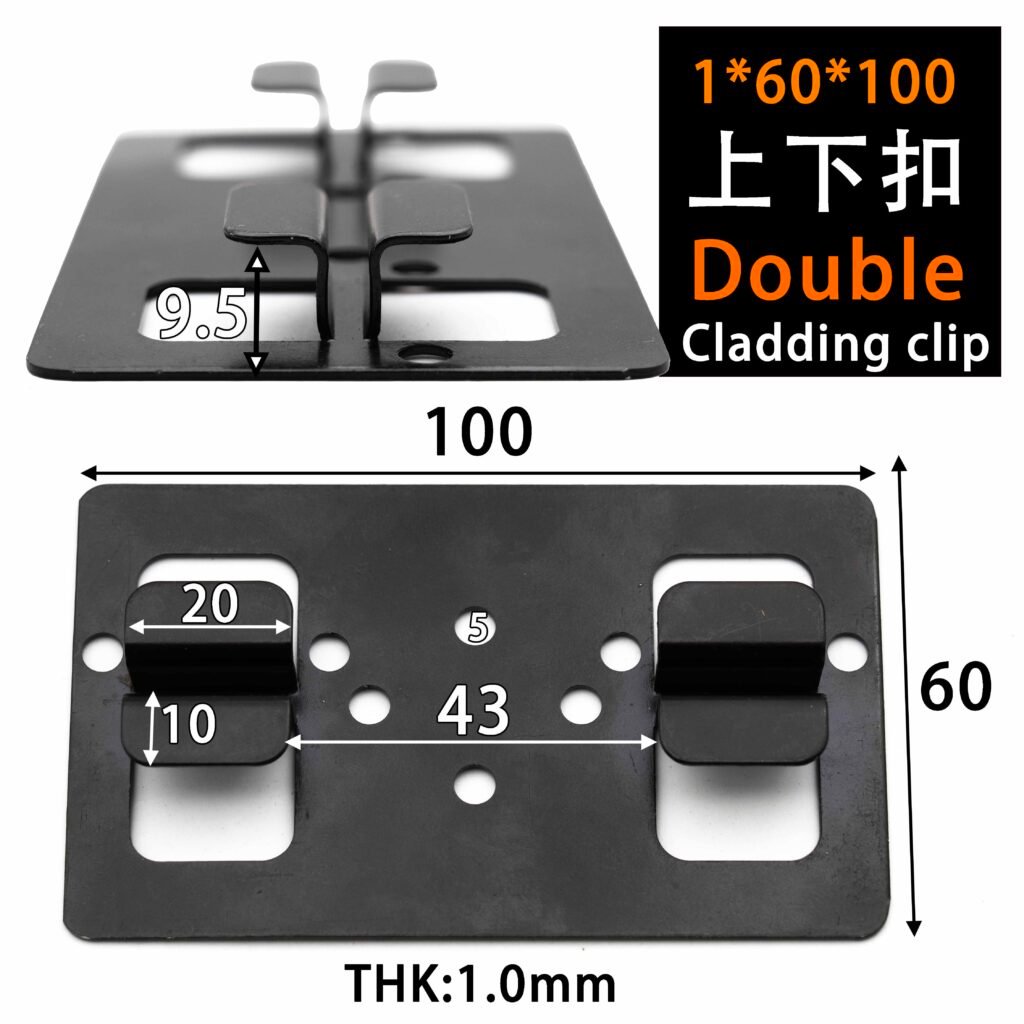

2. Double Clip

The Double Clip features two formed engagement sections on a single metal plate. It is intended for fixing arrangements that require two clip engagement points.

The clip dimensions and engagement geometry should be matched to the panel profile and the specified fixing configuration.

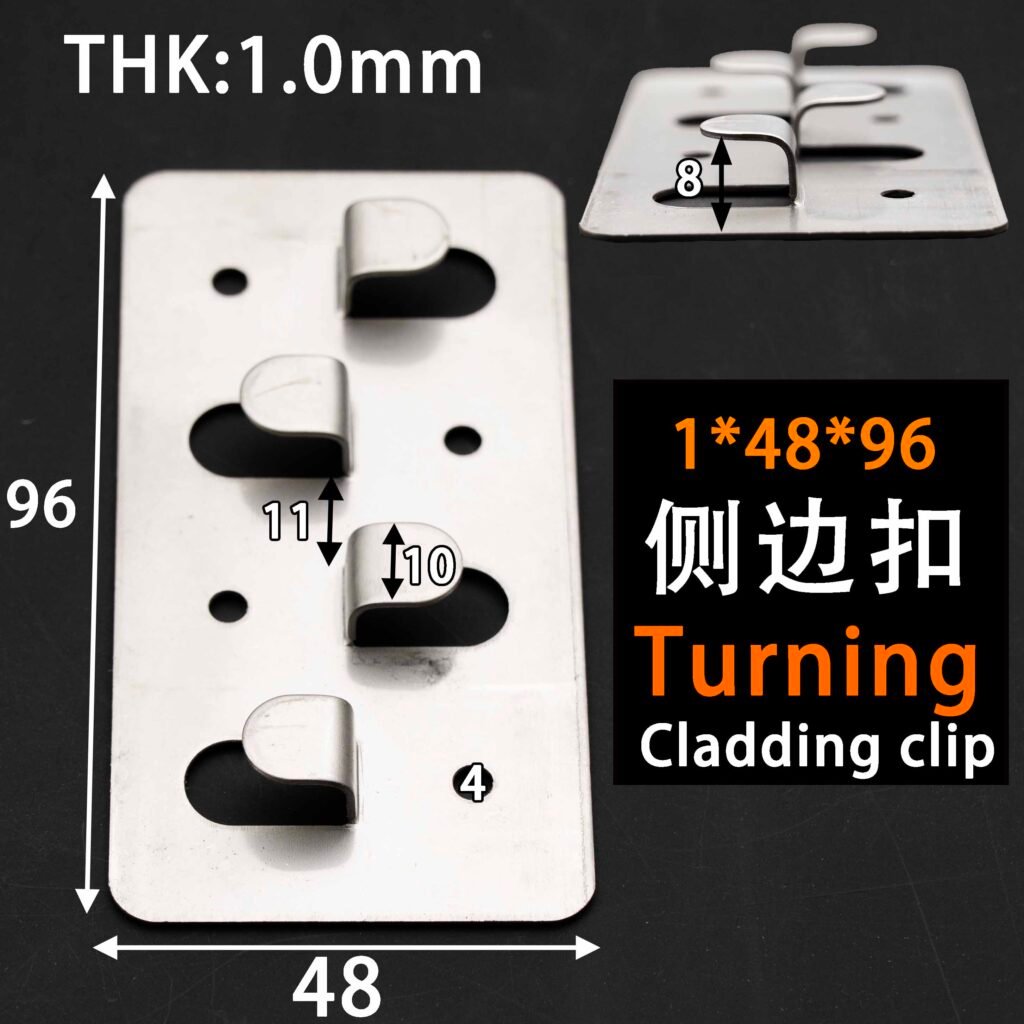

3. Turning Clip

The Turning Clip is designed for specific side-fixing, turning or return details within the facade assembly. Its formed profile accommodates the required fixing position where a standard clip configuration may not be suitable.

The appropriate shape and orientation should be confirmed against the facade layout and installation drawings.

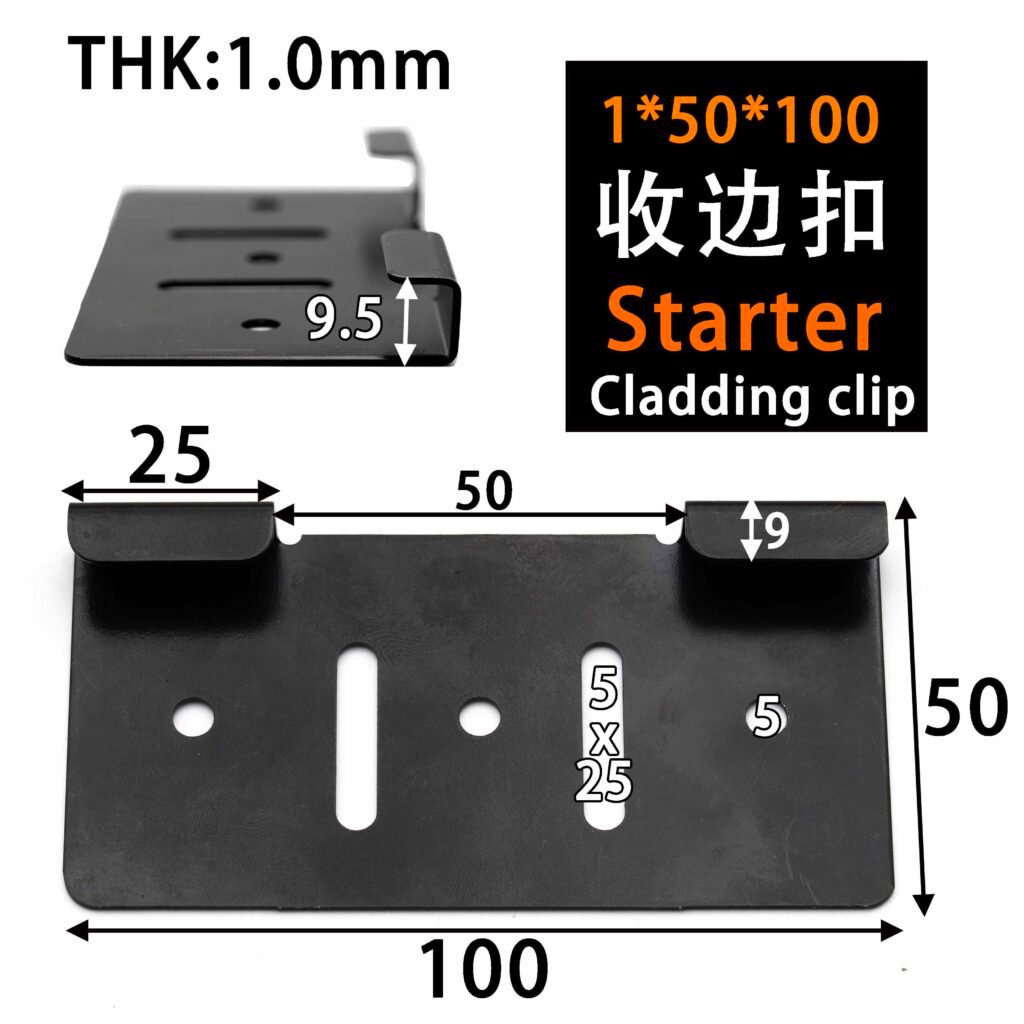

4. Starter Clip

The Starter Clip is used for designated starting, edge or termination positions, depending on the system layout. It helps provide the required clip engagement at the relevant panel position.

The clip profile and fixing arrangement should be selected according to the panel edge detail and the approved installation method.

How Frontek Plus System Clips Work

A clip-based facade assembly generally combines cladding panels, supporting profiles and mechanical fixing components. The clips engage with designated panel positions and connect the panels to the supporting structure according to the system design.

Different clip configurations serve different fixing positions. Selecting the correct clip requires consideration of the panel profile, edge geometry, support arrangement and installation sequence.

For project applications, the clip type and quantity should be determined from the approved facade drawings and engineering requirements. The clips should not be selected by appearance alone.

Material and Custom Manufacturing

Weiqiang can discuss manufacturing options for Frontek Plus System clip components according to the selected product and project requirements.

Available manufacturing parameters can include:

• Material grade and thickness
• Clip profile and overall dimensions
• Formed engagement sections
• Fixing-hole positions and dimensions
• Surface finish, where required
• Production quantity and packaging requirements

For non-standard specifications, we can review customer drawings or physical samples before confirming the production details.

Material grades, dimensions and finishes should be confirmed for each clip type before ordering.

Typical Applications

These clip components are intended for the corresponding clip-based facade fixing arrangements and may be specified for applications such as:

• Ceramic and porcelain facade panels
• Ventilated facade assemblies
• Vertical panel-fixing arrangements
• Side, turning and return details
• Starting and edge-finishing positions

Actual suitability depends on the selected clip, panel profile, supporting structure and project-specific design.

Key Features

• Four clip configurations for different fixing positions
• Formed metal clip designs for facade panel installation
• Options for project-specific dimensions and profiles
• Manufacturing according to approved drawings or samples
• Custom production for project orders
• Suitable for quotation and specification review before bulk production

Custom Clips for Your Facade Project

If you need Frontek Plus System clips for a new project, replacement requirements or customized production, Weiqiang can review your drawings and specifications before confirming the manufacturing details.

To help us identify the correct clip, please provide the clip type, panel profile, required dimensions, material specification, estimated quantity and any available installation drawings or samples.

Our team can then review the requirements and discuss suitable manufacturing options.

Frequently Asked Questions

What types of Frontek Plus System clips do you manufacture?

Our product range includes Vertical Clips, Double Clips, Turning Clips and Starter Clips. The required configuration should be confirmed against the project drawings.

Can you manufacture clips according to a sample?

Yes. We can review physical samples or technical drawings to discuss the required profile, dimensions and manufacturing specifications.

Can the clip dimensions be customized?

Yes. Custom dimensions and formed profiles can be discussed according to the panel geometry, fixing position and project requirements.

How do I select the correct clip?

The selection depends on the panel profile, clip engagement geometry, supporting structure and installation position. We recommend confirming the clip type against the approved system drawings before ordering.

Can I order all four clip types together?

The four types can be included in one inquiry. Please specify the required quantities for each type so that the production and quotation requirements can be reviewed separately.

Do you supply the complete Frontek Plus System?

This product page covers clip components. Please specify if you also require supporting profiles, brackets or other fixing components so that the scope of supply can be clarified.

Request a Quote

Contact Weiqiang for Frontek Plus System clip inquiries, custom manufacturing and bulk orders.

Please send your drawings, samples, required quantities and project specifications so that we can review your requirements and provide a suitable quotation.
